Construction

CAD and CAM

Our CAD and CAM Department does drawing and designing not only for our own porposes, but also as per customers specifications by skilled designers and programmers using sophisticated CAD/CAM software. On the basic of customers data our CAD/CAM Department provides component design, constructs congruent injection mould, metal blade electrodes or prototypes

Our staff does have wide-ranging expierences in building devices, model-, pre- and large-scale production moulds as well as building punch and forming tools. Based on practical moulding expertise, tool shop collaboration and various methods of test and checking, we will provide an optimized solution to your engineering need. Therby we consider machine and material requirements, ejection needs and - certainly - we garantee appointed deploy scores.

Mastercam and Solid Works

We operate with Mastercam and Solid Works 2D and 3D CAD Data in the formats as IGES, DXF, ParaSolid, Step, STL, VDA, DWG, SAT, CATread, NFLPro and some more:

  • free formed surface construction
  • model, small and large scale moulds
  • punch and forming tools
  • Single and serial components

Made in our forge:

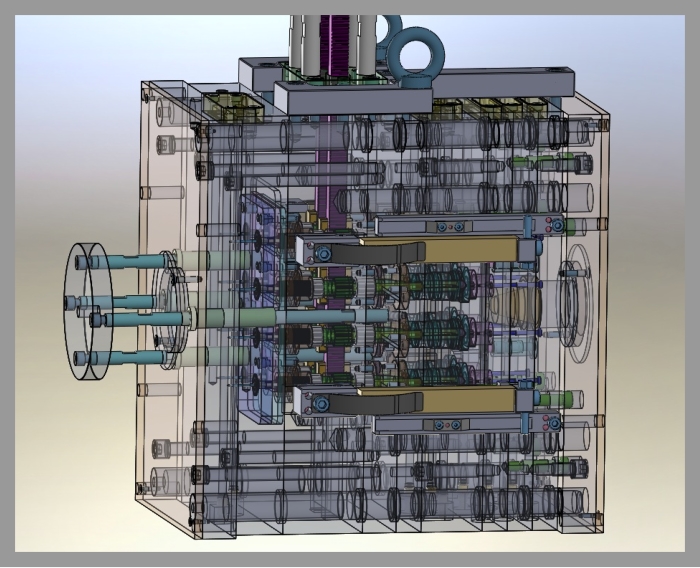

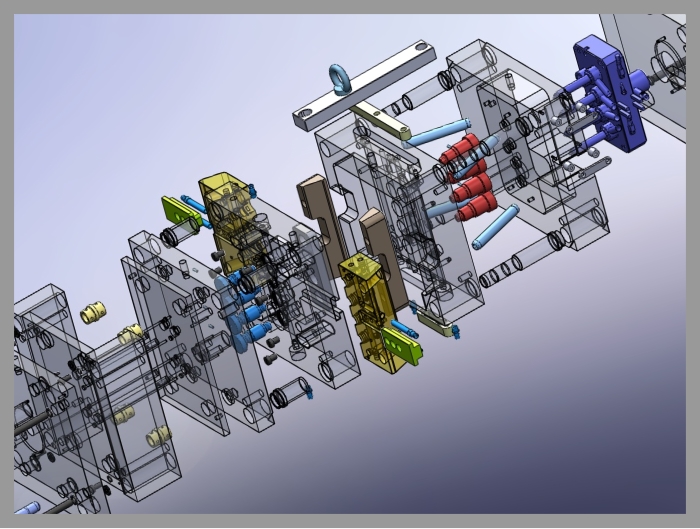

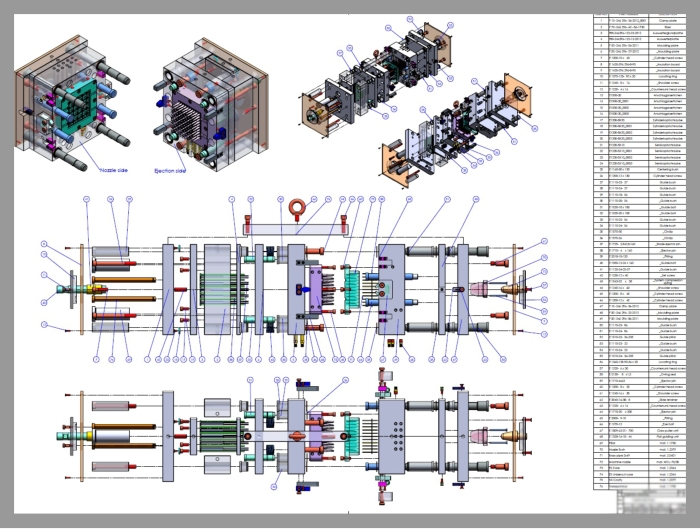

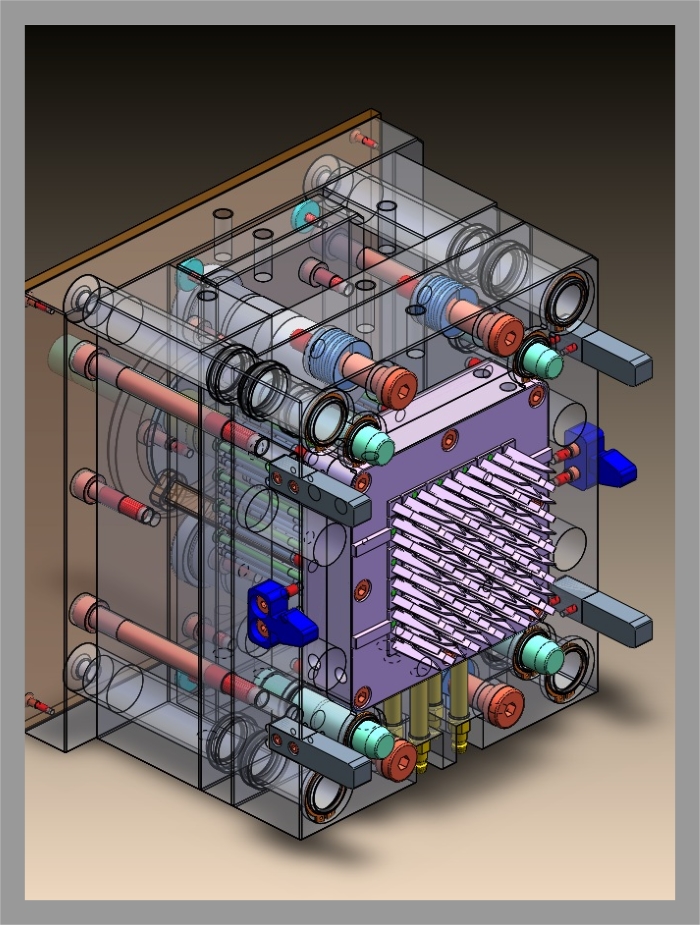

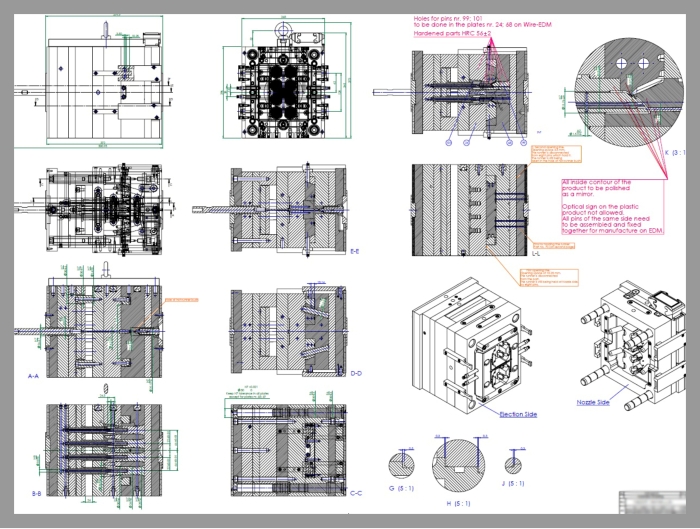

Engineering drawing Engineering drawing 3D Model of a form 3D Model of a form assembly drawing of a form
